Greenwich Village Townhouse II

Additional Drawings and Photos

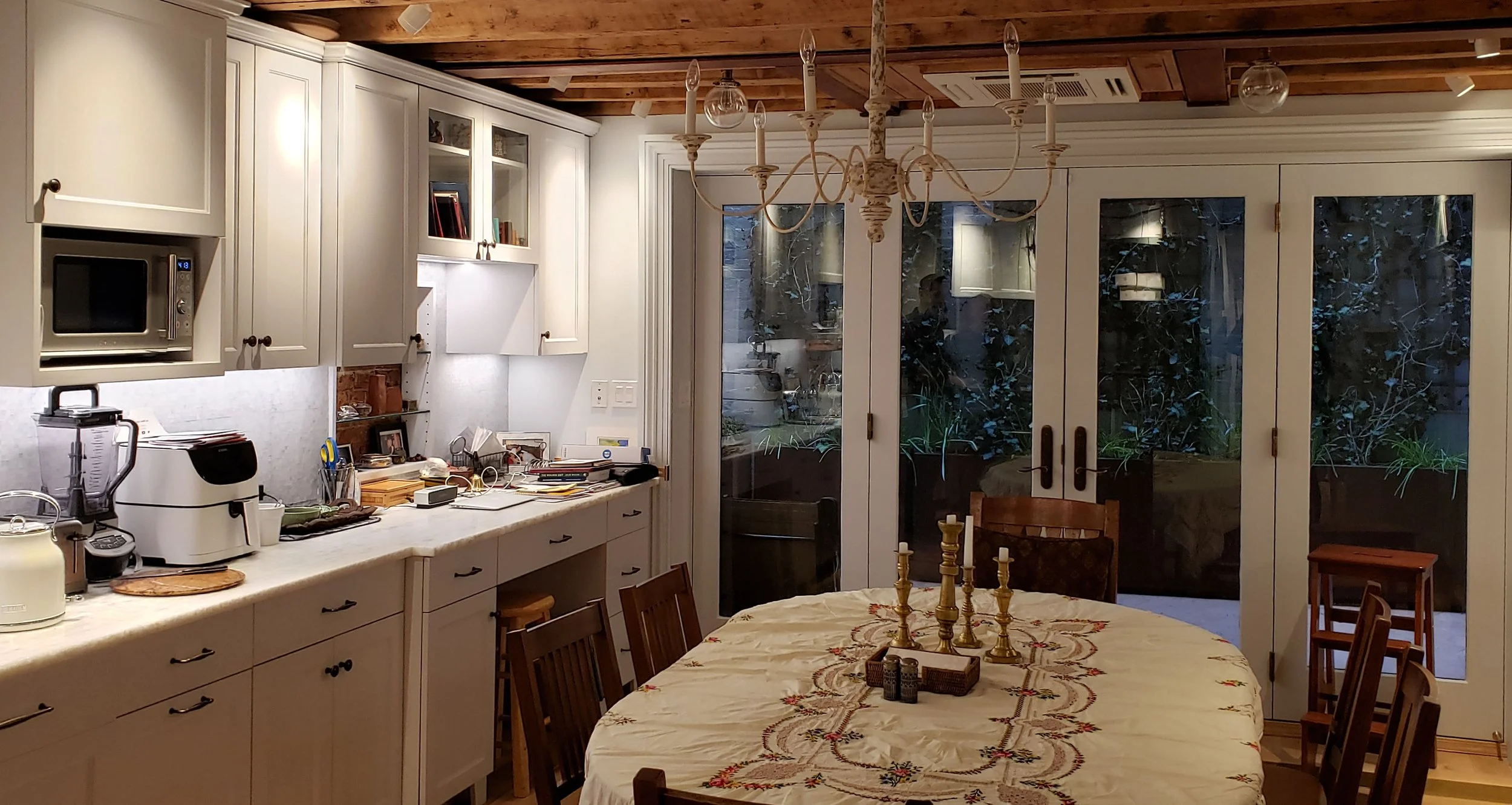

Kitchen with white cabinets, cluttered counter, and a round dining table with an embroidered tablecloth. There is a chandelier and large glass doors leading outside, revealing a garden.

Kitchen - showing Exposed Old Wood Joists and new Steel Cantilever Beams (support Parlor Bay Window)

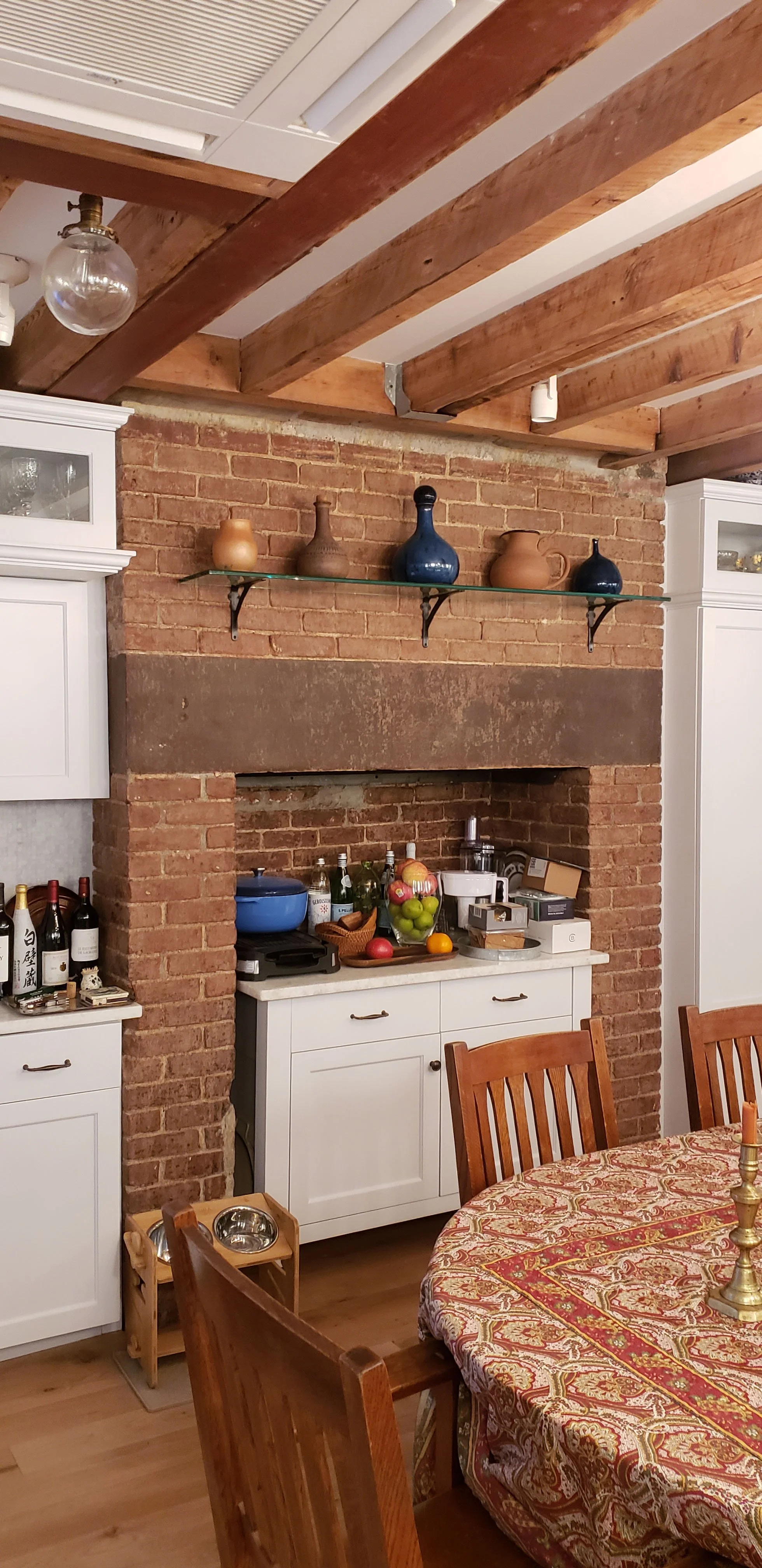

A cozy kitchen corner with a brick fireplace mantle, a white cabinet on each side, a glass shelf with vases, a dining table with a patterned tablecloth, and wooden chairs.

Kitchen - Detail of Original Cooking Hearth

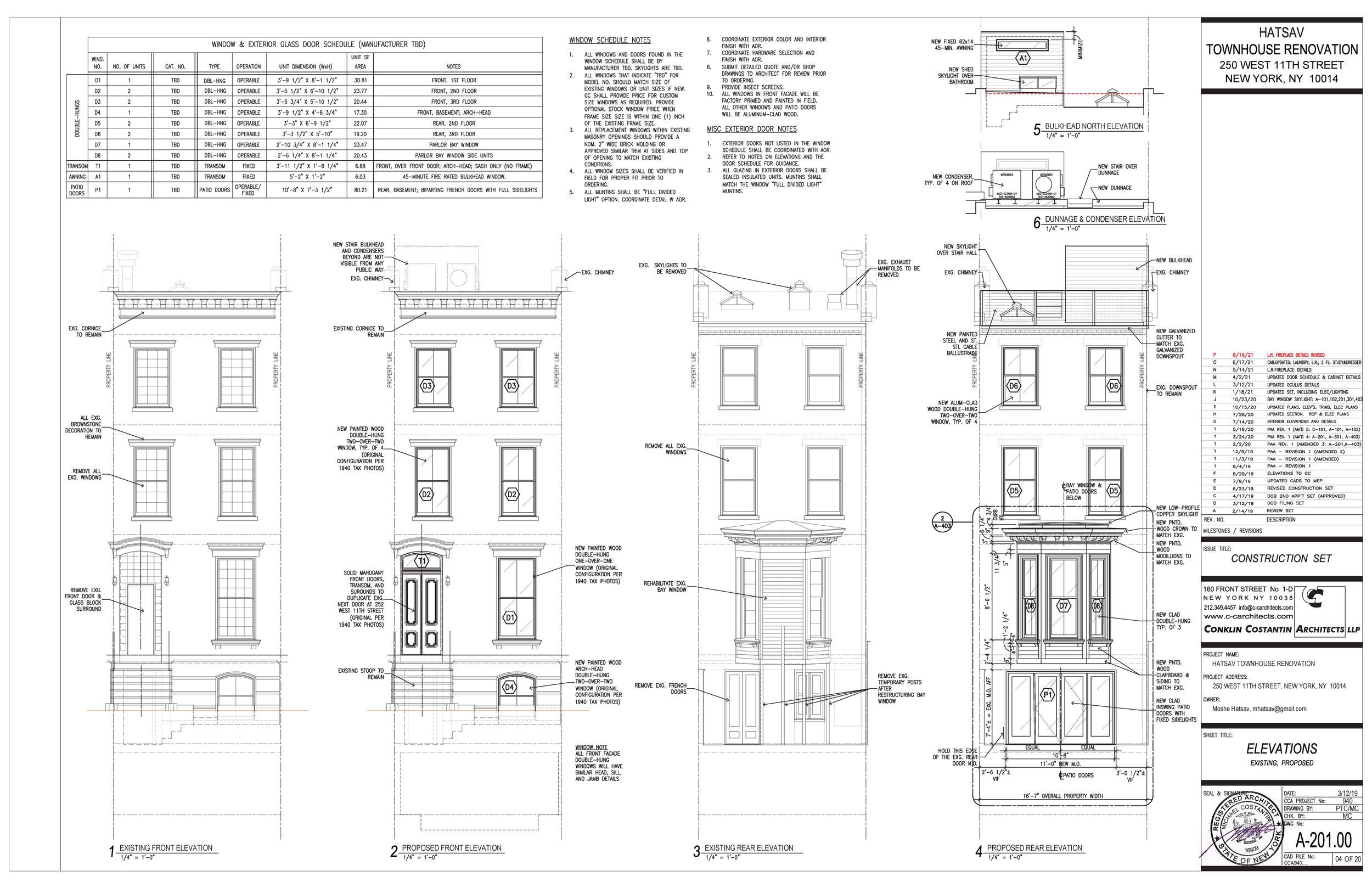

Exterior Elevation Drawing - showing Existing and New Facades

A building's exterior with a large window, decorative molding, and a small leaded glass window, surrounded by brick and siding, with greenery and neighboring buildings visible.

Newly Reconstructed Parlor Bay Window

Roof Terrace Facing South

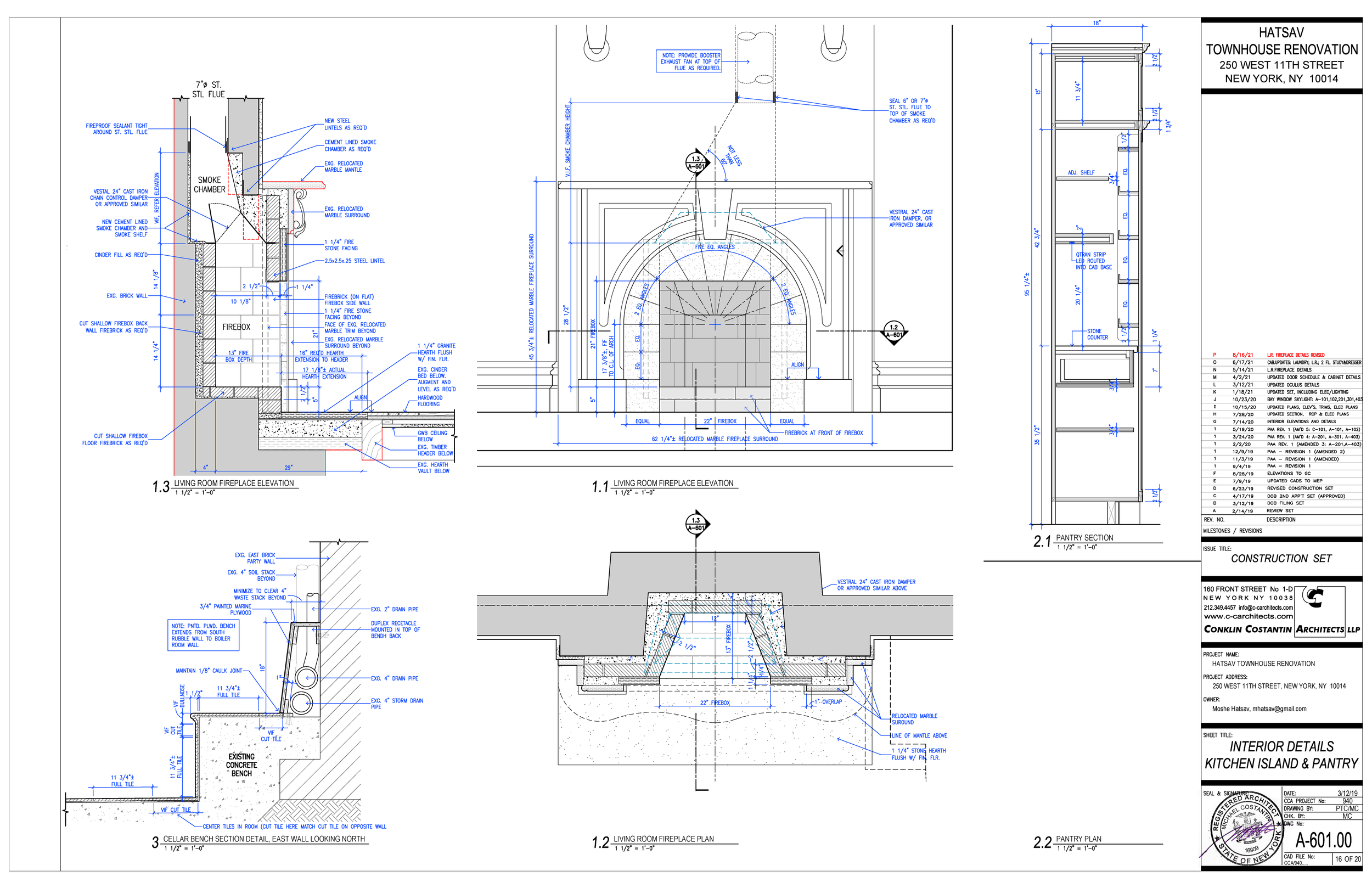

Reconstruction Parlor Fireplace Details

A hallway with wooden flooring, a staircase on the right, and an open doorway leading to another room. The ceiling has decorative molding and a high ceiling, and there are walls with tall wainscoting.

Sketch Study: intersection of Entry, Study, and Stair Hall

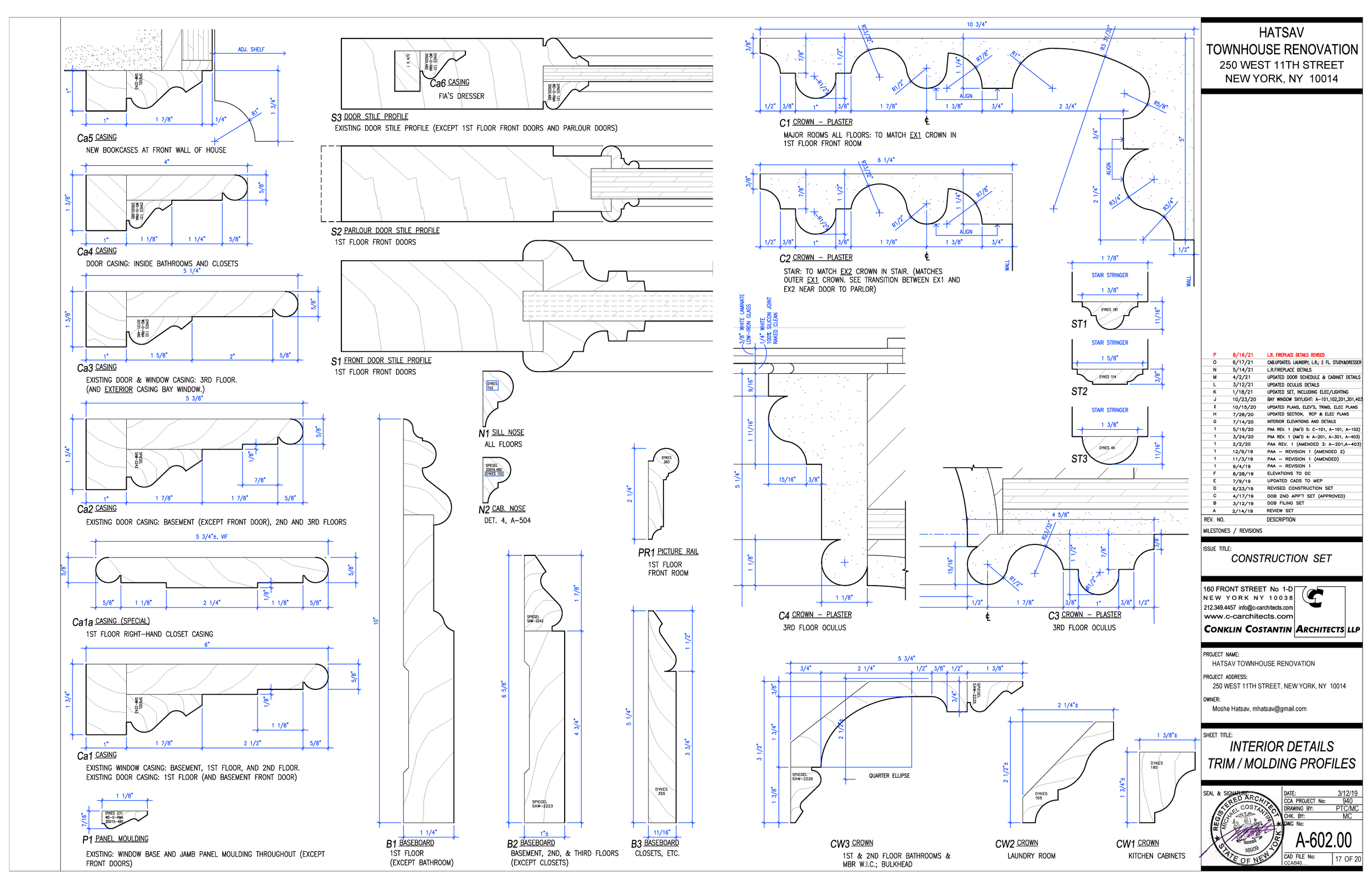

Architectural drawing of interior molding profiles with dimensions and notes for a townhouse renovation project.

Trim and Plaster Molding Details

A sketch of an interior hallway with a door at the end, baseboards, and a wooden floor with visible planks.

Sketch Study: intersection of Entry, Study, and Stair Hall

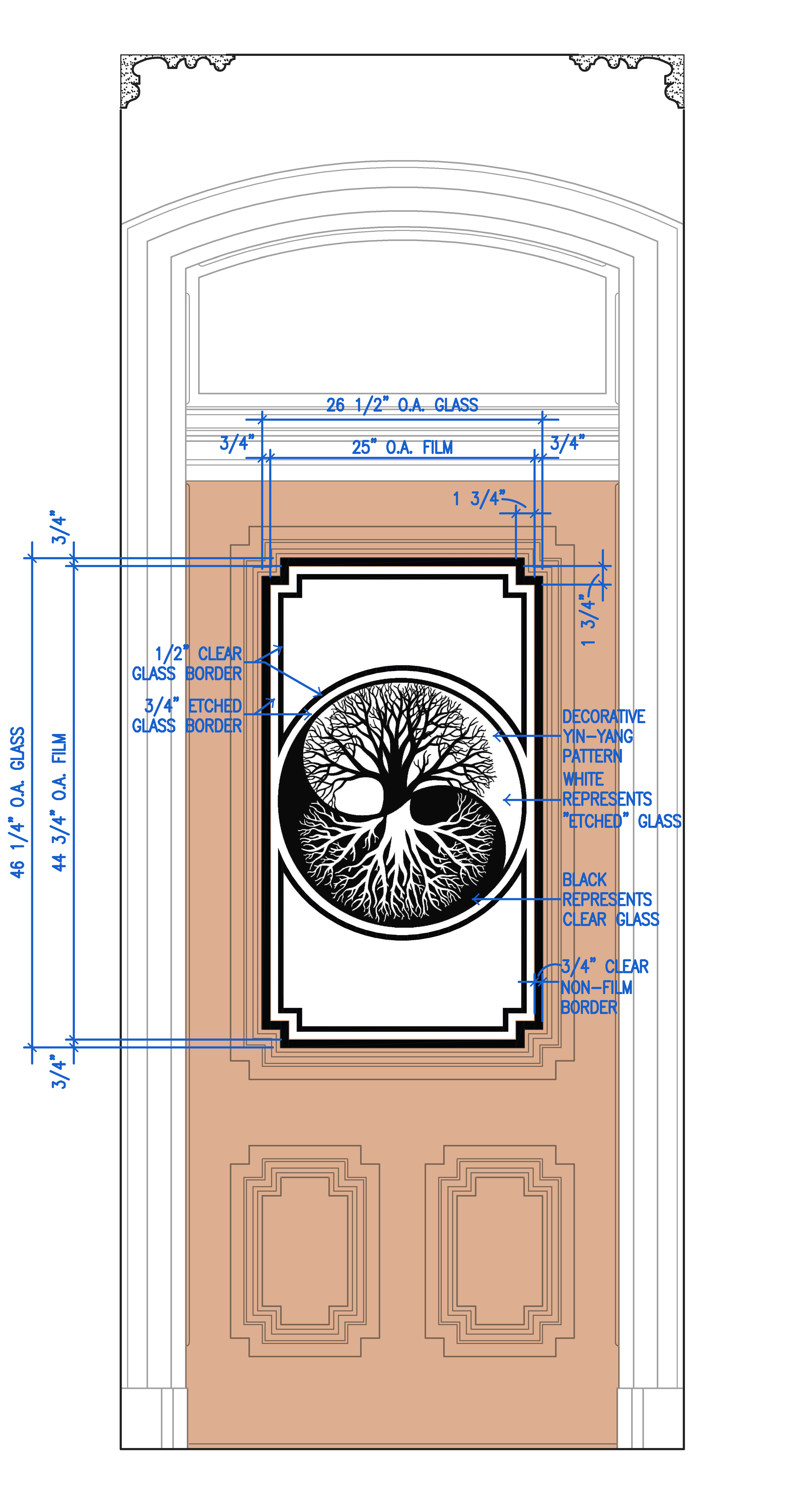

Detailed Drawing of Inner Vestibule Door with Etched Glass Pattern
