West 3rd Street Drawings

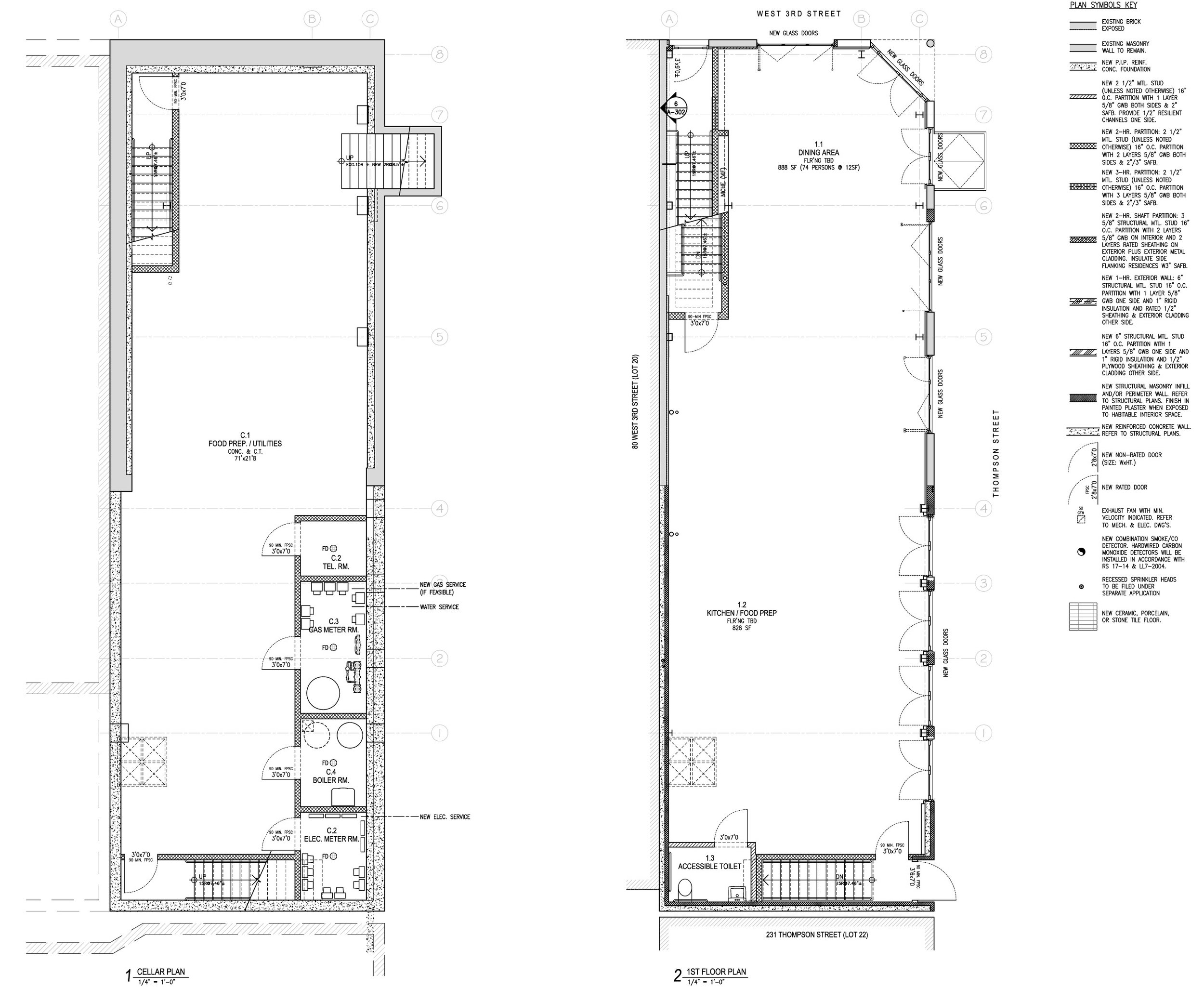

Basement (Cellar) Plan & 1st Floor Plan

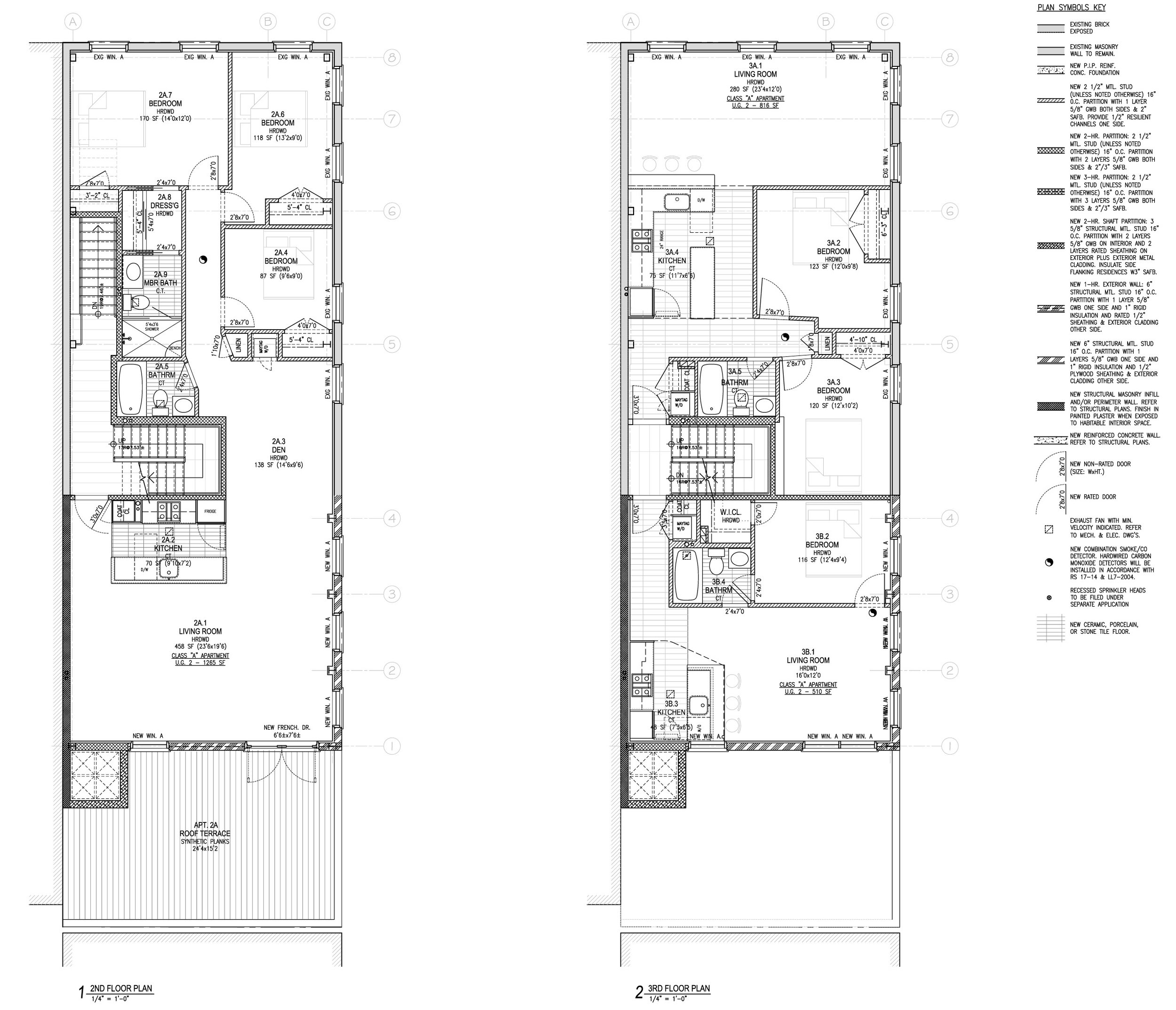

2nd Floor Plan & 3rd Floor Plan

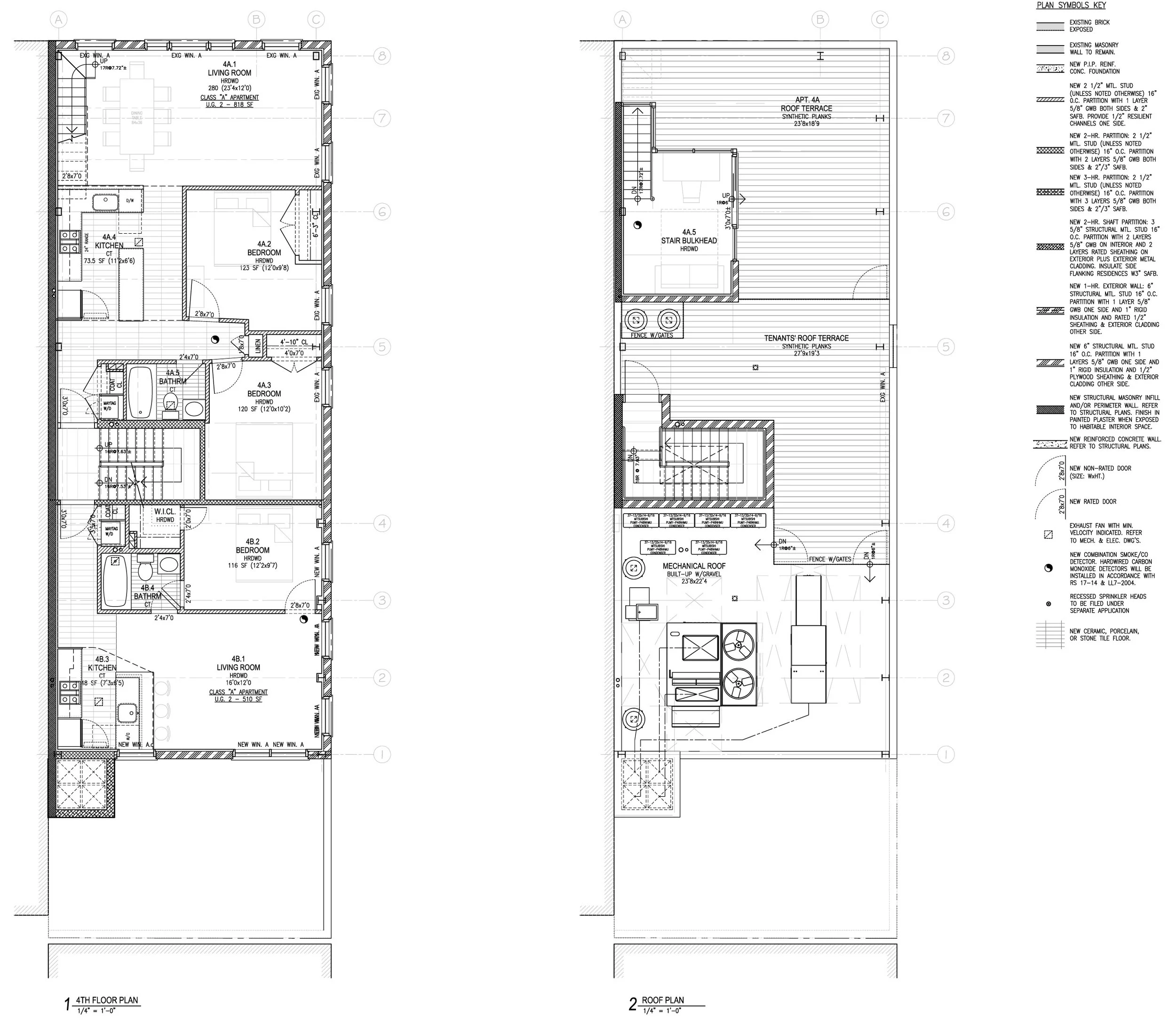

4th Floor Plan & Roof Plan

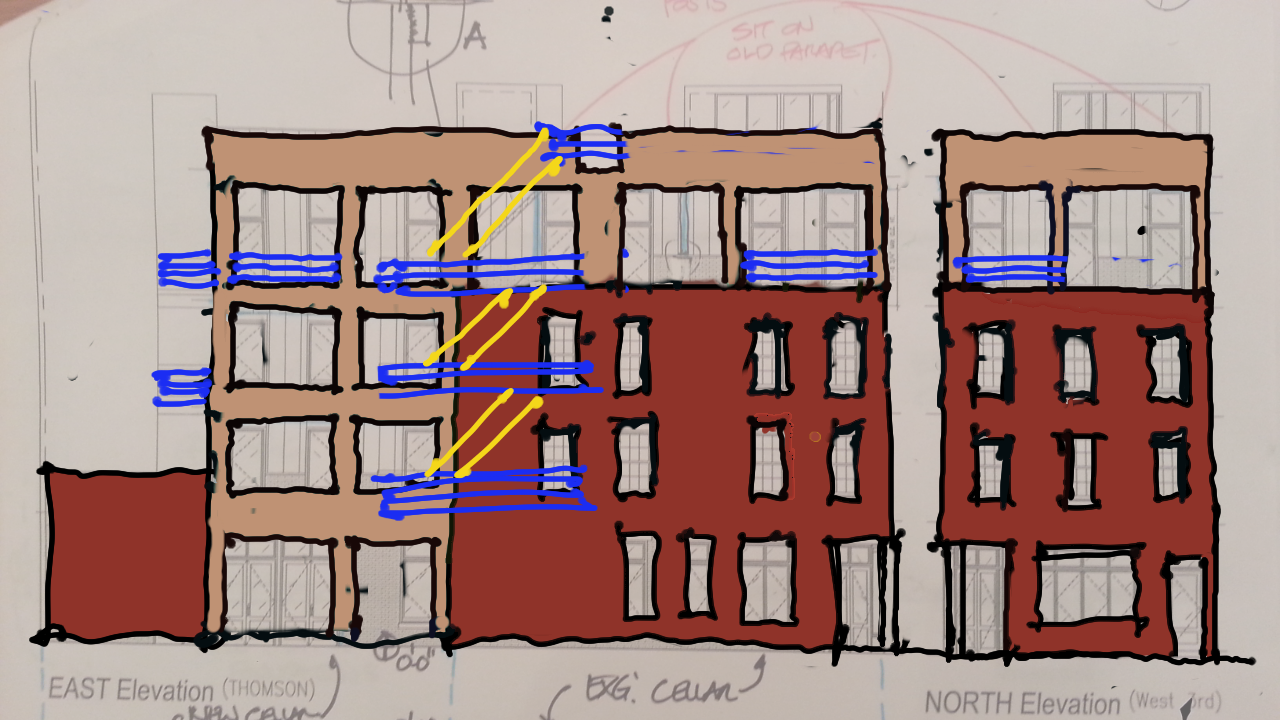

A concept sketch of the street facades.

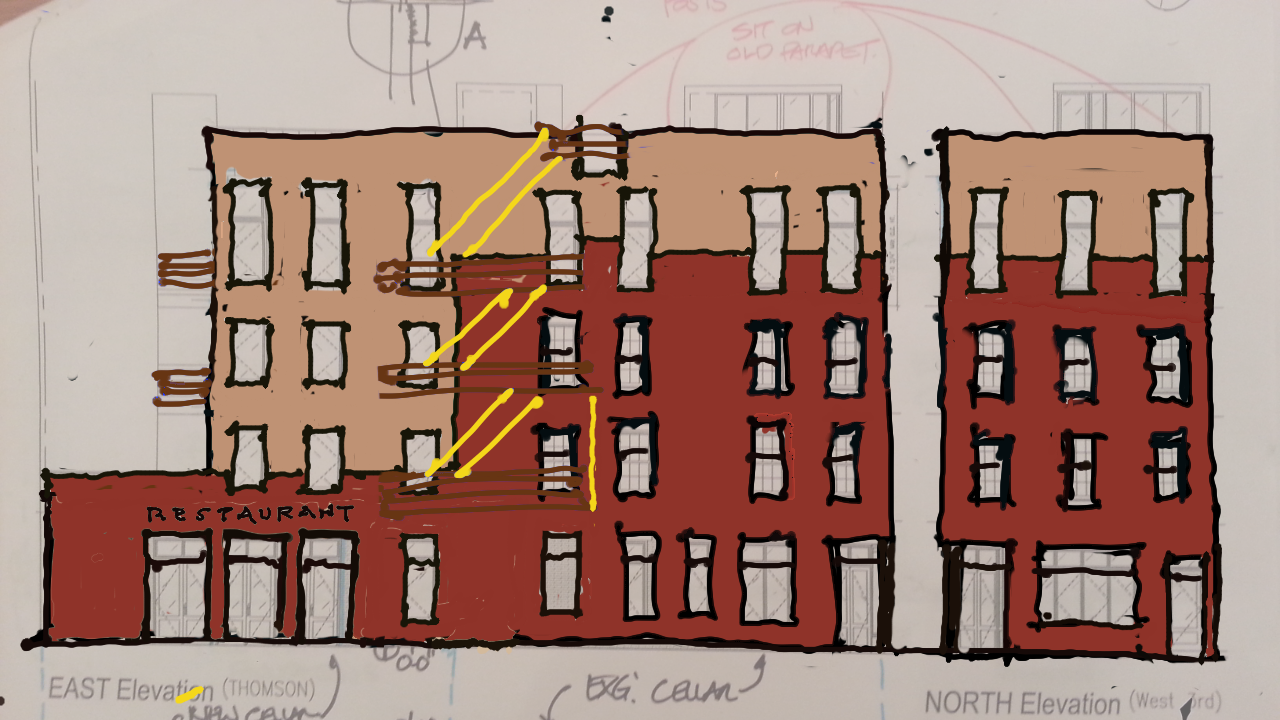

A concept sketch of the street facades.
A concept sketch of the street facades.

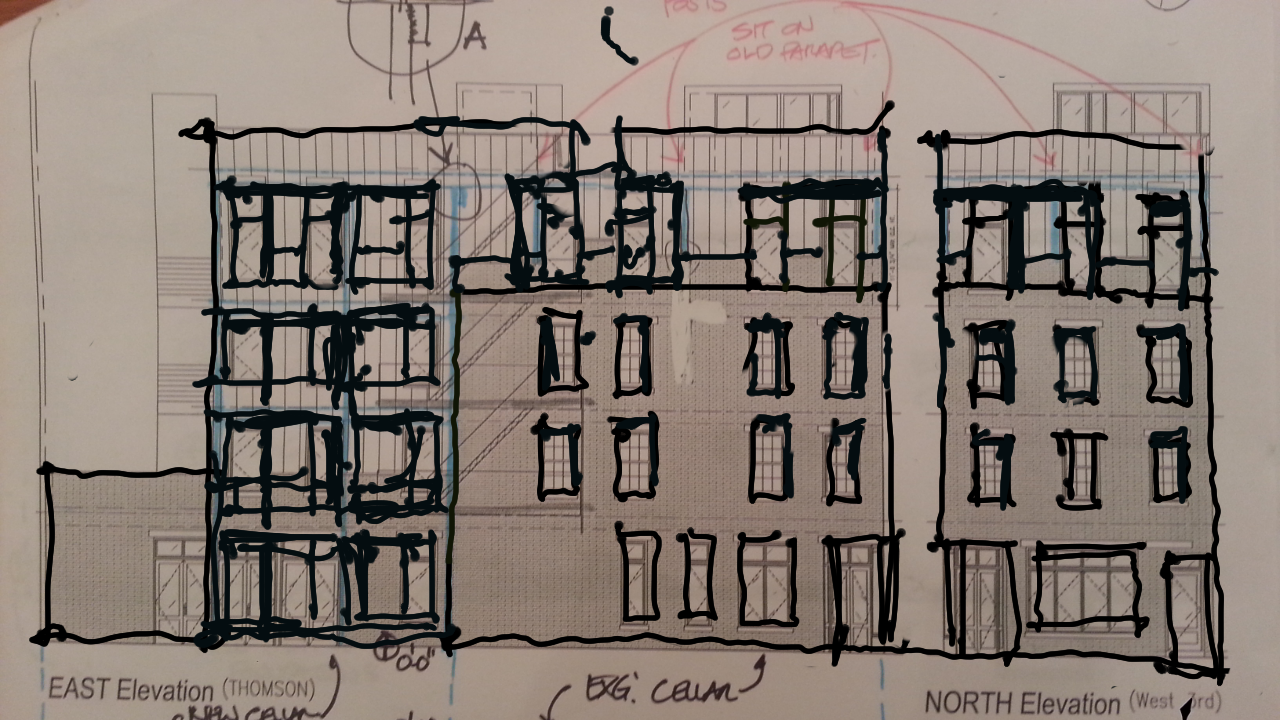

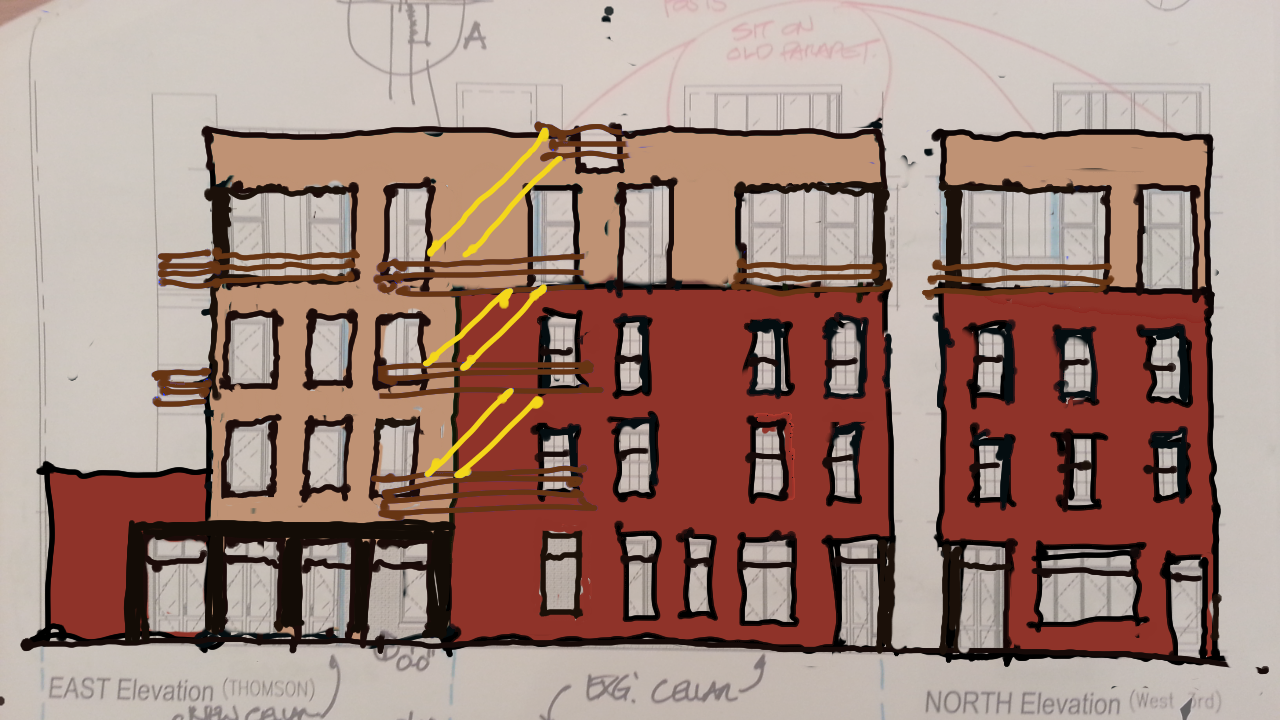

Sketch of a multi-story building with red brick and beige upper levels, showing window placements and balcony railings.

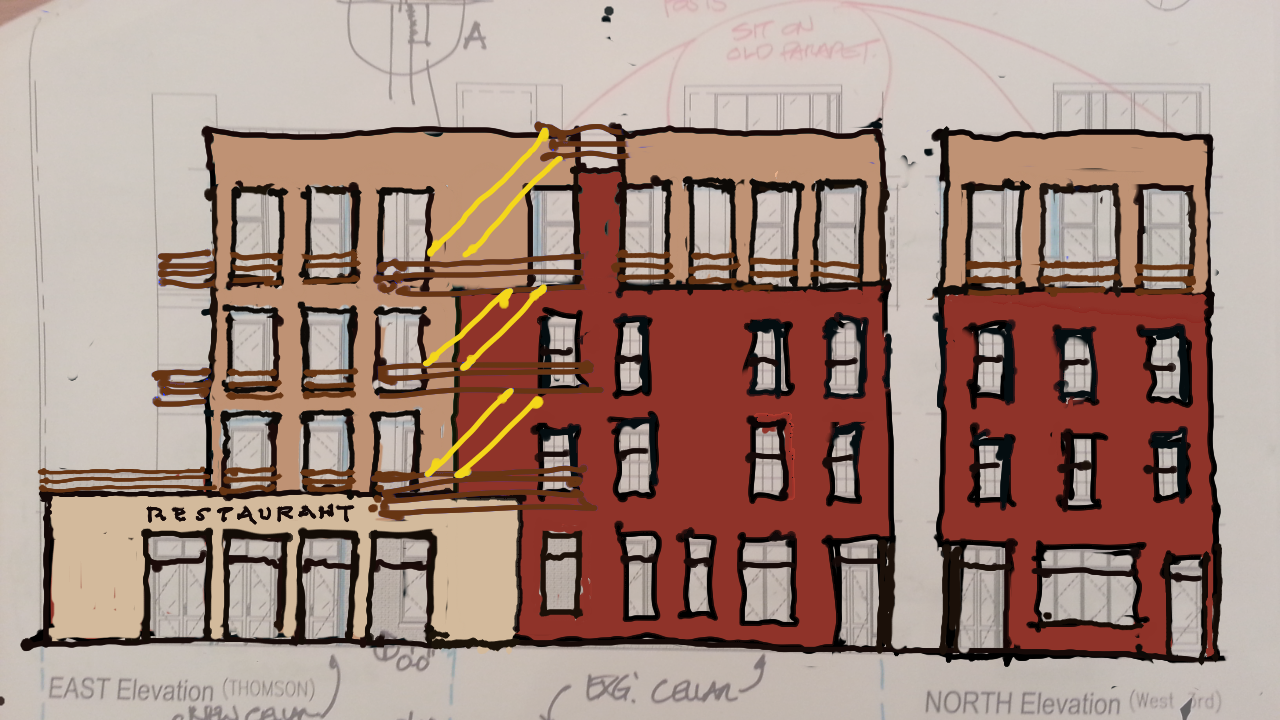

Drawing of a multi-story building with a restaurant on the ground floor and labeled as East Elevation, featuring windows, balconies, and color differentiation between the lower and upper floors.

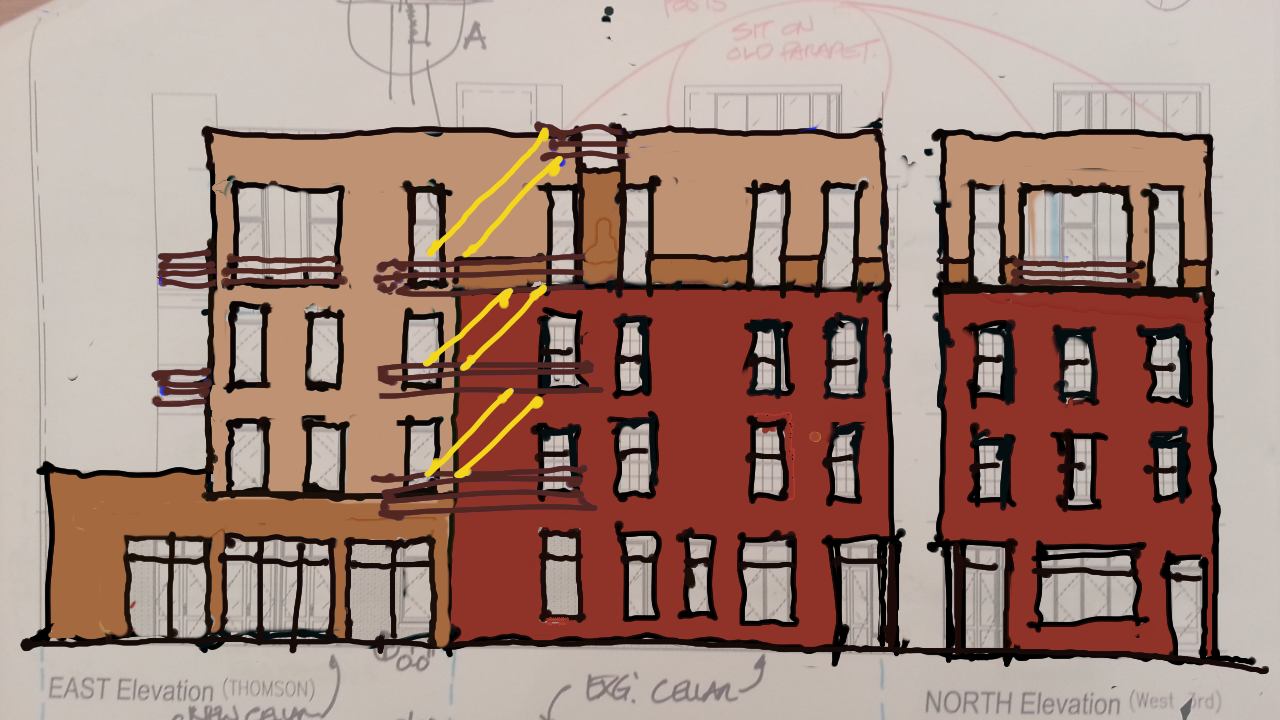

Drawing of a multi-story building with a restaurant on the ground floor and four upper floors, with balconies and windows, and annotations indicating different sections and notes about the building's design.

Facade Studies
