“Metro Mart” - Retail Kiosk Prototypes

The Metropolitan Transportation Authority (MTA) commissioned CCA to develop a Retail Kiosk project to be produced in multiples and destined for sites along the Metro North and Long Island Railroad Lines.  It was conceived as a flexible shell that can be in-filled to suit the varying needs of retail operators.  It also must incorporate rentable advertisement panels as a 24 hour revenue generator. From any approach a railway user can perceive both the advertising panels and the retail function inside.  At night the awnings fold down as security gates to completely secure the interior without covering the illuminated signage.

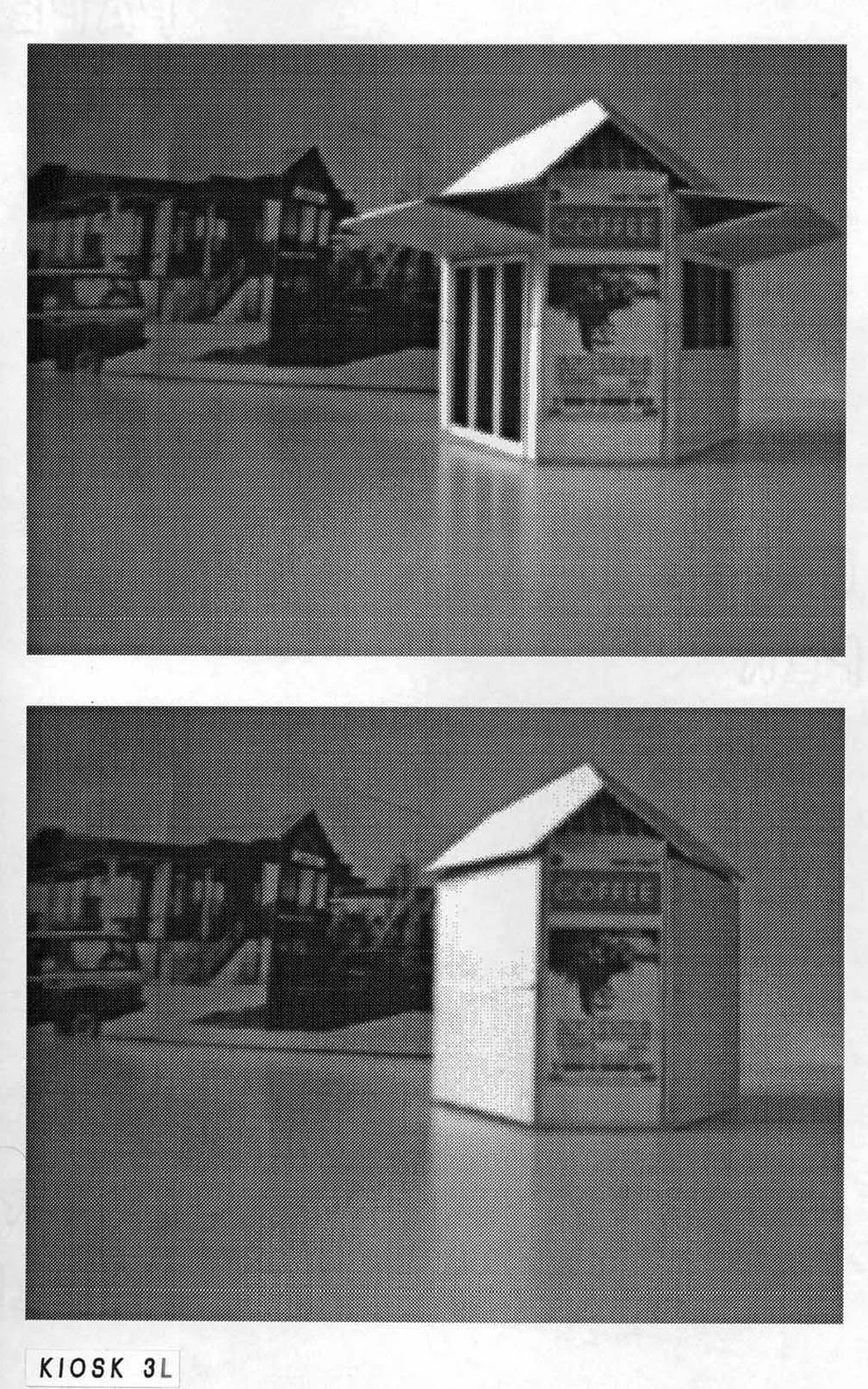

Retail kiosk conceptual model shown in open and closed positions with the train station beyond.
Retail kiosk conceptual model shown in open and closed positions with the train station beyond.

Narrow Hexagonal Kiosk - Model View

Retail kiosk conceptual model shown in open and closed positions with the train station beyond.
Retail kiosk conceptual model shown in open and closed positions with the train station beyond.

Broad Hexagonal Kiosk - Model View

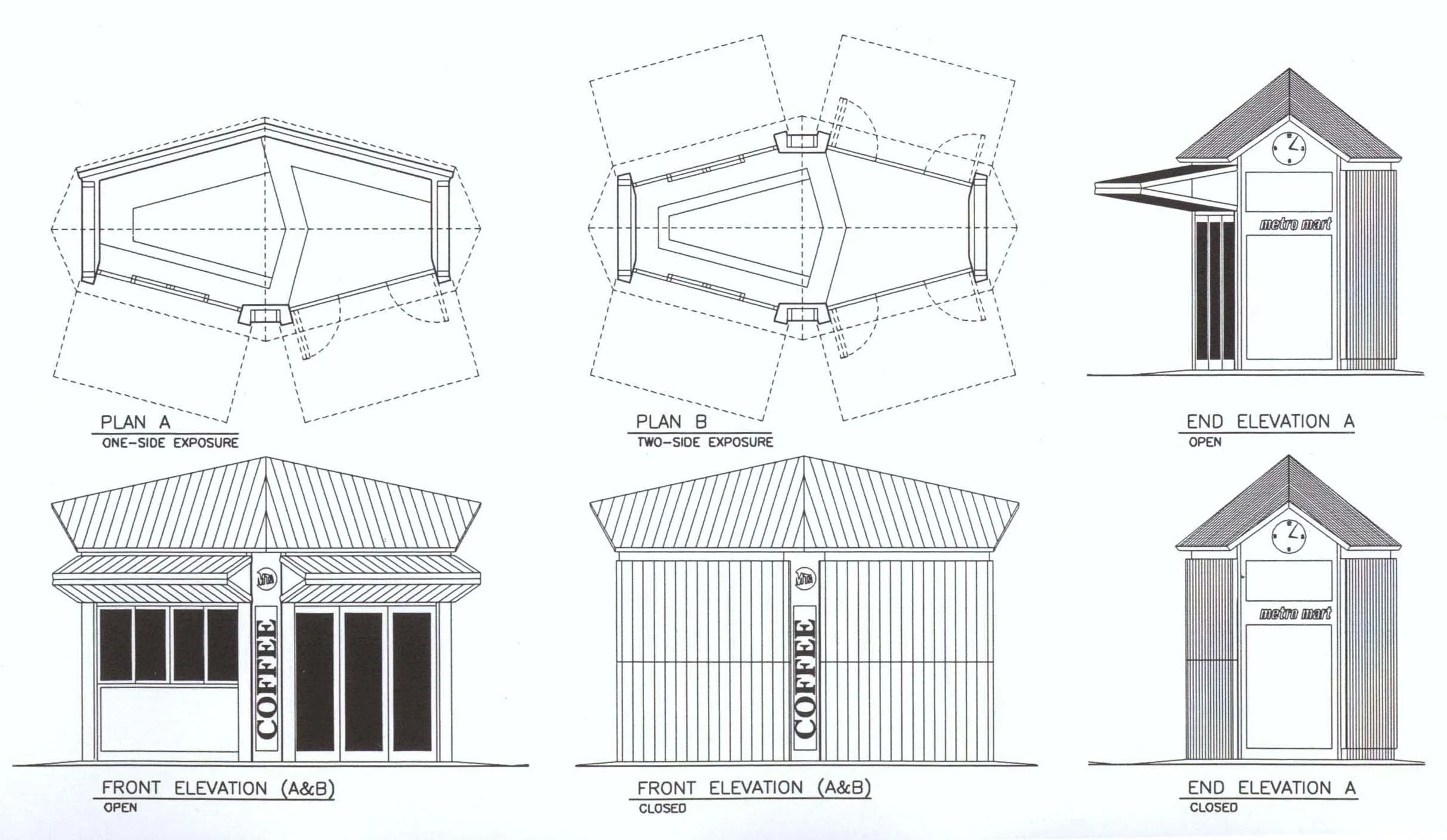

Concept drawings of a typical retail kiosk in open and closed positions.

Narrow Hexagonal Kiosk - Plans & Elevations

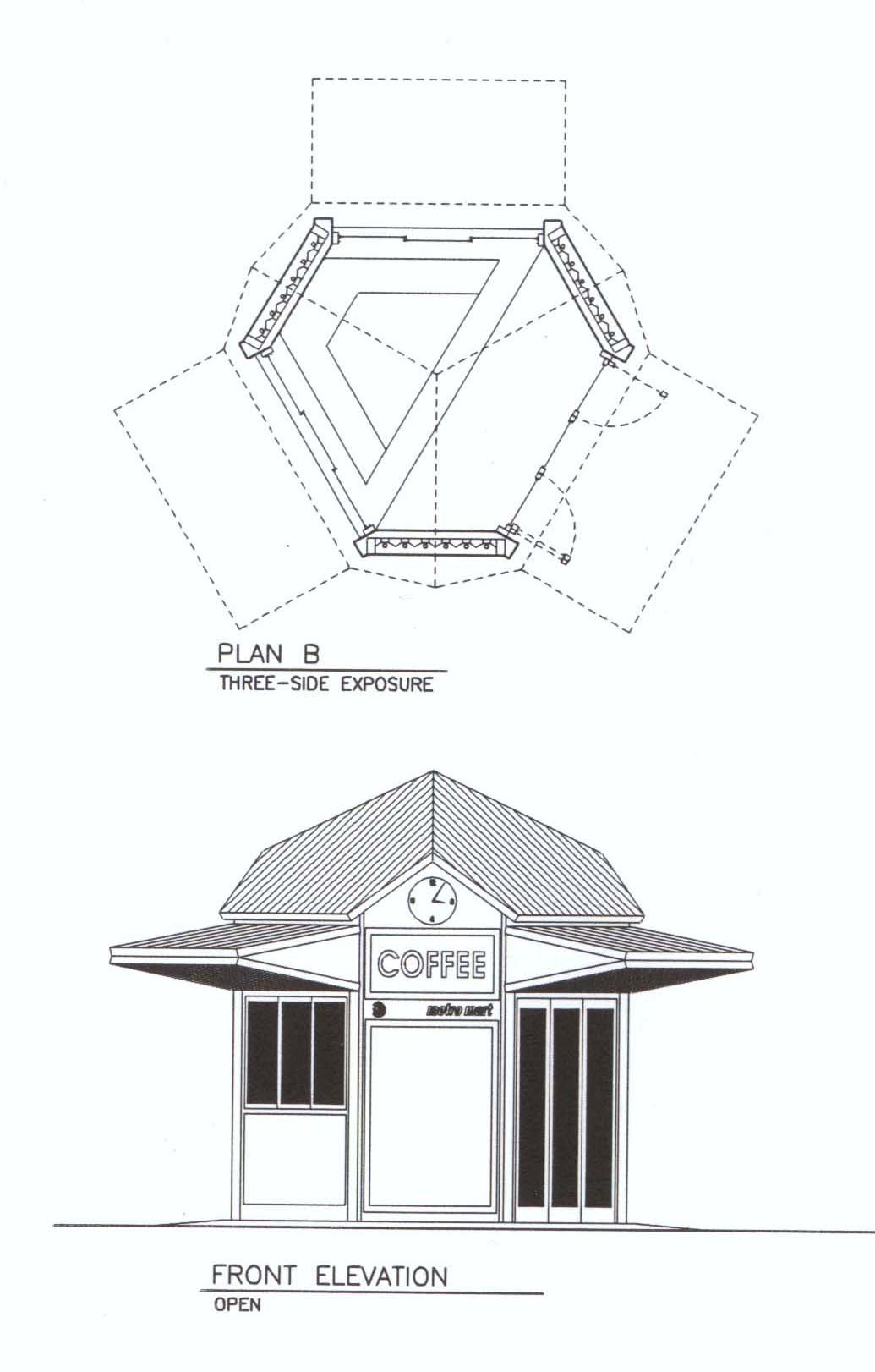

Concept drawings of a typical retail kiosk in open position.

Broad Hexagonal Kiosk - Plan & Elevation

Nighttime conceptual view of a typical retail kiosk in open and closed positions.

Narrow Hexagonal Kiosk - Nighttime Photo Montage View

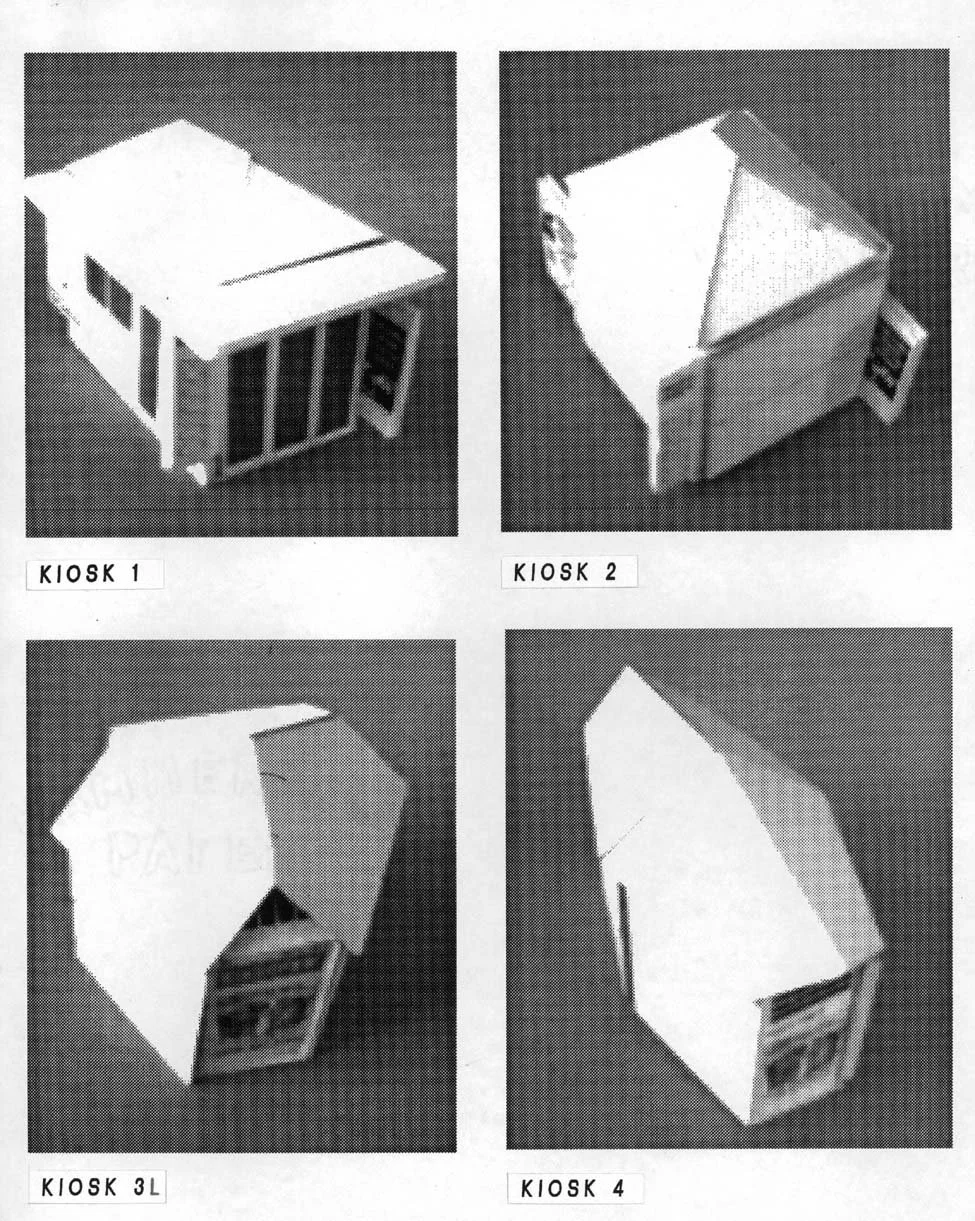

Design morphology of a typical retail kiosk.

Concept Models
